- Place of Origin: Shandong, China (Mainland)
- Brand Name: XLFY
- Model Number: XLFY1000-4-7
- :
- :

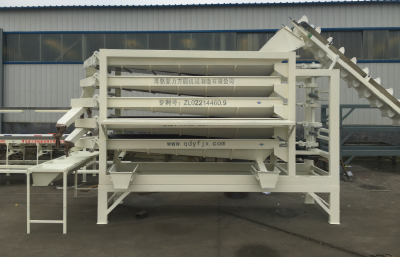

2-6 levels peanut screening machine/peanut grading machine/Peanut classifier
This machine is absorbed the advantages of similar products at home and abroad,
with compact structure, reasonable, high efficiency, save energy consumption,
easy to use the characteristic such as being reliable, applicable in selected peanut kernels,
by a select can achieve precise classification standard. The sprocket, chain drive push rod,
sieve body smooth reciprocating screening, the screen piece made with iron plate punching,
each layer sieve body are returned to the disc, can make the material in the screen piece by the whole process
above screening, and clear materials in the halfway or front screen that is caused by the classification is not clear into
the disadvantages,and each layer sieve bottom after all have certain lists, facilitate the material flow smoothly.
Main parameter of the machine:
| NO. | Model | processing capacity MT/H | after insallation dimension(m) | Power(KW) | frequency conversion | screen sheet |
| 1 | 80-2-7 | 1 | 3.5*1.12*2.7 6.5*2*3.2 | 1.5 | 20 | |
| 2 | 80-3-7 | 1.5 | 3.5*1.12*2.6 6.5*2*3.2 | 1.5 | 30 | |
| 3 | 80-4-7 | 2 | 3.5*1.5*1.7 6.5*2*3.5 | 1.5 | 50 | |
| 4 | 80-5-7 | 2.5 | 3.5*1.12*1.9 6.5*2*3.6 | 2.2 | 70 | |
| 5 | 80-6-7 | 3 | 3.5*1.12*2.15 6.5*2*4 | 3 | 80 | |
| 6 | 100-3-7 | 2 | 3.6*1.3*2.2 7.5*2.3*3.2 | 1.5 | 30 | |
| 7 | 100-4-7 | 3 | 3.6*1.3*1.7 7.5*2.3*3.5 | 2.2 | 50 | |
| 8 | 100-5-7 | 3.5 | 3.6*1.3*2.1 7.5*2.3*3.9 | 3 | 70 | |
| 9 | 100-6-7 | 4 | 3.6*1.3*2.4 7.5*2.3*4.2 | 3 | 80 | |
| 10 | 100-3-10 | 3 | 3.6*1.3*2.4 7.5*2.3*4.2 | 2.2 | 40 | |
| 11 | 100-4-10 | 4 | 4.6*1.3*1.9 8.5*2.3*3.7 | 3 | 4KW | 56 |
| 12 | 100-5-10 | 5 | 4.6*1.3*2.3 8.5*2.3*4.2 | 4 | 90 | |
| 13 | 100-6-10 | 6 | 4.6*1.3*2.65 8.5*2.3*4.5 | 4 | 100 | |
| 14 | 120-4-7 | 4 | 3.6*1.4*1.7 7.5*2.4*3.5 | 2.2 | 50 | |
| 15 | 120-5-7 | 5 | 3.6*1.4*2.1 7.5*2.4*3.9 | 3 | 70 | |
| 16 | 120-6-7 | 6 | 3.6*1.4*2.4 7.5*2.4*4.2 | 3 | 80 | |
| 17 | 120-3-10 | |||||
| 18 | 120-4-10 | 5 | 4.6*1.4*1.9 8.5*2.4*3.7 | 3 | 4KW | |
| 19 | 120-5-10 | 6 | 4.6*1.4*2.3 8.5*2.4*4.2 | 4 | ||
| 20 | 120-6-10 | 7 | 4.6*1.4*2.65 8.5*2.4*4.5 | 4 |
