this machine is patented products a total of two models of customers choose. using the most advanced technology produced ,to solve the international food standard peroxidation quality exceed the standard ,wait for a problem ,when used with a uniform baking, high efficiency, low breakage rate, convenient discharging and other advantages ,widely used in the major import and export units.
Raw material color sorting machine
one set of color sorting technology according to the needs of customers using domestic and imported brand color sorting machines, with high resolution,high efficiency,low energy consumption,low noise and other advantages,enhance ,slag and choose reasonable assembly,clever articulation, a precise selection of objective.
Peanut screening machine
this machine for column transmission screening machine(national patent products) ,is currently used the same industry's latest products,greatly improve the previous ordinary chain driving mode, with low noise,durability, appearance simple,precise,follow-up screening has the advantages of low cost,Can be divided into 2-10 leve,the existing two layers, four layers,five layers,six layers,seven layers,eight layers, model 800, model 1000,model 1200. six kinds of products.
screening machine sieve
this machine adopts hing quality wear-resisting steel,refined,divided into round long hole and long hole, three catalogues of dozens of varieties,with high elasticity, resistance to wear, not plugging and etc.

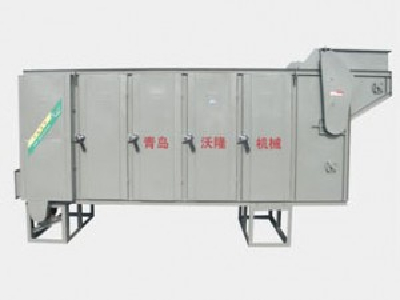

2-6 levels peanut screening machine/peanut grading machine/Peanut classifier
This machine is absorbed the advantages of similar products at home and abroad,
with compact structure, reasonable, high efficiency, save energy consumption,
easy to use the characteristic such as being reliable, applicable in selected peanut kernels,
by a select can achieve precise classification standard. The sprocket, chain drive push rod,
sieve body smooth reciprocating screening, the screen piece made with iron plate punching,
each layer sieve body are returned to the disc, can make the material in the screen piece by the whole process
above screening, and clear materials in the halfway or front screen that is caused by the classification is not clear into
the disadvantages,and each layer sieve bottom after all have certain lists, facilitate the material flow smoothly.
Main parameter of the machine:
NO. | Model | processing capacity MT/H | after insallation dimension(m) | Power(KW) | frequency conversion | screen sheet |
1 | 80-2-7 | 1 | 3.5*1.12*2.7 6.5*2*3.2 | 1.5 | 20 | |
2 | 80-3-7 | 1.5 | 3.5*1.12*2.6 6.5*2*3.2 | 1.5 | 30 | |
3 | 80-4-7 | 2 | 3.5*1.5*1.7 6.5*2*3.5 | 1.5 | 50 | |
4 | 80-5-7 | 2.5 | 3.5*1.12*1.9 6.5*2*3.6 | 2.2 | 70 | |
5 | 80-6-7 | 3 | 3.5*1.12*2.15 6.5*2*4 | 3 | 80 | |
6 | 100-3-7 | 2 | 3.6*1.3*2.2 7.5*2.3*3.2 | 1.5 | 30 | |
7 | 100-4-7 | 3 | 3.6*1.3*1.7 7.5*2.3*3.5 | 2.2 | 50 | |
8 | 100-5-7 | 3.5 | 3.6*1.3*2.1 7.5*2.3*3.9 | 3 | 70 | |
9 | 100-6-7 | 4 | 3.6*1.3*2.4 7.5*2.3*4.2 | 3 | 80 | |
10 | 100-3-10 | 3 | 3.6*1.3*2.4 7.5*2.3*4.2 | 2.2 | 40 | |
11 | 100-4-10 | 4 | 4.6*1.3*1.9 8.5*2.3*3.7 | 3 | 4KW | 56 |
12 | 100-5-10 | 5 | 4.6*1.3*2.3 8.5*2.3*4.2 | 4 | 90 | |
13 | 100-6-10 | 6 | 4.6*1.3*2.65 8.5*2.3*4.5 | 4 | 100 | |
14 | 120-4-7 | 4 | 3.6*1.4*1.7 7.5*2.4*3.5 | 2.2 | 50 | |
15 | 120-5-7 | 5 | 3.6*1.4*2.1 7.5*2.4*3.9 | 3 | 70 | |
16 | 120-6-7 | 6 | 3.6*1.4*2.4 7.5*2.4*4.2 | 3 | 80 | |
17 | 120-3-10 | |||||
18 | 120-4-10 | 5 | 4.6*1.4*1.9 8.5*2.4*3.7 | 3 | 4KW | |
19 | 120-5-10 | 6 | 4.6*1.4*2.3 8.5*2.4*4.2 | 4 | ||
20 | 120-6-10 | 7 | 4.6*1.4*2.65 8.5*2.4*4.5 | 4 |
